Anatomy of a Java Class

Section 3.3 Anatomy of a Java Class

90 minutes

In Unit 1, we learned to use classes and objects that are built-in to Java or written by other programmers. In this unit, you will learn to write your own classes and make your own objects!

🔗

Remember that a class in Java defines a blueprint for creating objects. When you create objects, you create new instances of that class and what you can do with those instances is determined by what methods are defined in the class.

🔗

For example, we created yertle and myrtle, 2 Turtle variables and assigned them references to objects created from the class Turtle and we used instances of Java’s String class to assign values to different String variables.

🔗

Watch this short video to review the vocabulary of object-oriented programming:

🔗

Subsection 3.3.1 Parts of a Class

Most classes you write will have the keyword public before them though it is not required. The class definition itself always starts with the word class followed by the name of the class. Then the rest of the class, called the body, is defined inside a pair of {}s.

🔗

Since we’re talking about anatomy, let’s create a class called Person. Classes are almost always named with capitalized names though this is a matter of style, not a rule of the language. In this course, classes are always designated public and are declared with the keyword class. Here is the basic skeleton of a Person class:

🔗

public class Person
{
    // define class here - also called the “body” of the class

}

You can create instances of the Person class with new as in new Person() And you can declare variables that can hold a reference to a Person object with Person variableName. Or put it altogether to declare some variables and initialize each one with a reference to a new Person as shown here.

🔗

Person ada = new Person();
Person charles = new Person();

So what makes up the body of the class — the stuff between the {}s?

🔗

Remember that objects have both attributes and behaviors. These correspond to instance variables and methods in the class definition. The first things we define in a class are usually the instance variables. They are called that because each instance of the class (each object) has its own set of variables that aren’t shared with other instances. This is what allowed yertle and myrtle from to be at different positions at the same time; they each had their own x position and y position instance variables.

🔗

The next thing we define in a class is usually its constructors. We’ll talk about writing constructors in more detail in the next section but a constructor’s job is to initialize the instance variables when the object is created. In this course, constructors are always designated public.

🔗

The real meat of a class is in the methods which define the behaviors of the objects of that class. Remember that most methods either do things (like the Turtle methods that moved the turtle on the screen) or return values like the getXPos and getYPos on Turtle. The methods of the class share access to the object’s instance variables and when a method is called on an object it uses the instance variables for that object. For example in the Turtle class the forward method changes an instance variable xPos. When you call forward on yertle it changes xPos on the yertle object and when you call it on myrtle it changes the xPos on the myrtle object.

🔗

Putting it all together, the three main anatomical features of a class are the instance variables which hold values associated with each object, the constructors whose job is to initialize the instance variables, and the methods who contain the code that gives the objects their behavior and which can use the instance variables defined in the class.

🔗

public class Person
{
    // instance variables

    // constructors

    // methods

}

And finally one last bit of weird anatomy, kind of like the appendix: any Java class can have a main method which can be used to run that class as a program either to test that one class or sometimes as the entry point to a whole program made up of many classes and objects.

🔗

Subsection 3.3.2 Designing a Class

Now that we know what the skeleton of a class looks like and the elements that make up the body of the class, we’re ready to create our own class. Let’s start with a quick look at how to design a class such as Person.

🔗

One important question we have to ask when designing a class is, what data does it represent? In this case we can ask, what would we want to know about a person? Our answer will depend on what problem we are trying to solve. In one program, perhaps an address book, we might want to know the person’s name and phone number and email. In another program, such as a medical application, we might need to know their vital signs such as their blood pressure, temperature, and pulse rate.

🔗

For now let’s go with the address book example. Here’s a fleshed out Person class with instance variables, a constructor, and methods. We’ll go through the details in the next few sections but for now you can run the code to see how it constructs 2 Person objects and fills in their data. Remember that execution always starts in the main method. When a method like print is called, the code defined in the method runs but when it gets the values of name, email, and phoneNumber it gets the specific values of those variables that were set by the constructor when the particular object we called print on was created. Click on the Show CodeLens button below and the Next button to run the code step by step.

🔗

Activity 3.3.1.

The following Person class keeps track of the name, email, and phone number of a person. Try changing the Person p2 object in the main method to your name. Click on the Show CodeLens button and then Next to step through the code.

🔗

public class Person
{
    // instance variables
    private String name;
    private String email;
    private String phoneNumber;

// constructor: construct a Person copying in the data into the instance
    // variables
    public Person(String initName, String initEmail, String initPhone)
    {
        name = initName;
        email = initEmail;
        phoneNumber = initPhone;
    }

// Print all the data for a person
    public void print()
    {
        System.out.println("Name: " + name);
        System.out.println("Email: " + email);
        System.out.println("Phone Number: " + phoneNumber);
    }

// main method for testing
    public static void main(String[] args)
    {
        // call the constructor to create a new person
        Person p1 = new Person("Sana", "sana@gmail.com", "123-456-7890");
        // call p1's print method
        p1.print();
        Person p2 = new Person("Jean", "jean@gmail.com", "404 899-9955");
        p2.print();
    }
}
====
// Test for Lesson 5.1.0 - Person class - should pass if/when they run code
import static org.junit.Assert.*;

import org.junit.*;

import java.io.*;

public class RunestoneTests extends CodeTestHelper
{
    @Test
    public void testMain() throws IOException
    {
        String output = getMethodOutput("main");
        String expect =
                "Name: Sana\n"
                    + "Email: sana@gmail.com\n"
                    + "Phone Number: 123-456-7890\n"
                    + "Name: Jean\n"
                    + "Email: jean@gmail.com\n"
                    + "Phone Number: 404 899-9955";

boolean passed = getResults(expect, output, "Expected output from main", true);
        assertTrue(passed);
    }
}

🔗

Subsection 3.3.3 Data encapsulation

Data encapsulation is an object-oriented design technique in which the implementation details of a class are kept hidden from external classes. The keywords public and private are called access modifiers, and they affect how you can the access classes, data, constructors, and methods. The keyword public means anyone can access this; it allows access from classes outside the declaring class. The keyword private restricts access to the declaring class which means that variables or methods marked private are only accessible inside the class where they are defined. In general, instance variables in a class should be declared private to ensure data encapsulation.

🔗

Subsection 3.3.4 Instance Variables

Instance Variables (sometimes called attributes, fields, or properties) hold the data for an object. They belong to the object, and each object has its own copy of these variables.

🔗

In general and definitely on the AP CSA exam, instance variables should be declared private. Think of private as like your diary. Only you should have direct access to it. Similarly, in Java a private instance variable can only be accessed by code inside the class that declares the variable.

🔗

Note 3.3.1.

Instance variables are declared right after the class declaration. They usually start with private then the type of the variable and then a name for the variable. Private means only the code in this class has access to it.

🔗

The Person class declares 3 private instance variables: name, email, and phoneNumber. These are things that you might want to know about a person. They are declared at the top of the class and they exist inside the { } of the class.

🔗

Once we have created a class like Person, we can create many instances (objects) of the class. The class is like a blueprint or cookie cutter that defines the variables and methods for that class. Each object will have their own copies of the same instance variables but with possibly different values in them (as seen in the cookie decorations below).

🔗

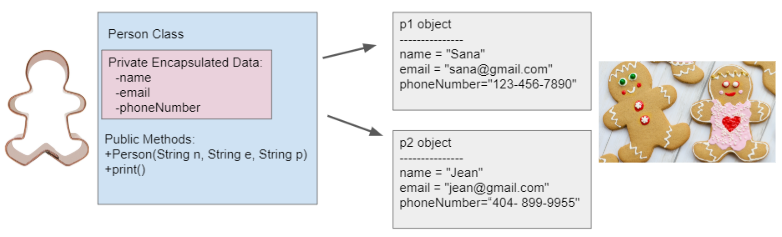

Figure 3.3.2. Person Class and Objects
🔗

Access to attributes should be kept internal to the class in order to accomplish encapsulation. It is good programming practice to designate the instance variables as private in order to ensure data encapsulation where the data (instance variables) and the code acting on the data (methods) are wrapped together into a single unit and the implementation details are hidden. Only code in the class can access or change the values of private instance variables. This keeps the data secure and makes it a lot easier to keep track of how your program works than if you had to worry that any code anywhere in a much larger program could possibly change the values of the variables.

🔗

Code in other classes can only interact with the public methods you provide and cannot directly access the private instance variables (shown in the pink box above). When designing a class you get to decide what data to make accessible or modifiable from other classes by what public methods you provide.

🔗

Activity 3.3.2.

Click on all the instance variable declarations in the following class

🔗

Remember, instance variables are private and are declared after the class declaration.

public class Name
{
    private String first;
    private String last;

    public Name(String theFirst, String theLast)
    {
        first = theFirst;
        last = theLast;
     }

     public void setFirst(String theFirst)
     {
        first = theFirst;
     }

     public void setLast(String theLast)
     {
        last = theLast;
     }
}

🔗

Activity 3.3.3.

The following Person class keeps track of the name, email, and phone number of a person. What other data could you keep track of about a Person? Add another private instance variable of your choice. Do not worry about changing the constructor or other methods yet.

🔗

public class Person
{
    // instance variables
    private String name;
    private String email;
    private String phoneNumber;
    // Add another private instance variable about a Person here

import org.junit.*;

import java.io.*;

public class RunestoneTests extends CodeTestHelper
{
     @Test
    public void testPrivateVariables()
    {
        String expect = "4 Private";
        String output = testPrivateInstanceVariables();

boolean passed = getResults(expect, output, "Checking Private Instance Variable(s)");
        assertTrue(passed);
    }
}

🔗

Subsection 3.3.5 Instance Methods

Instance methods define what we can actually do with an object, their behaviors and functions. These methods have direct access to the instance variables and can use them and change them to perform their tasks. In Unit 1, we used and wrote static class methods like Math.random() which were called with the classname. Instance methods are not marked static and are always called using an object of the class and can access the object’s instance variables.

🔗

Methods are defined in the class after the instance variables and constructors. They are usually marked as public so they can be accessed from inside or outside the class. Methods designated as private are not accessible outside of the class; they can only be used as helper methods by other methods inside the same class.

🔗

Note 3.3.3.

Methods define what the object can do. They typically start with public then a type, then the name of the method followed by parentheses for optional parameters. Methods defined for an object can access and use its instance variables!

🔗

The Person class above has a print method that prints out all the data stored for a person object. Notice that it is marked as public and after public comes the return type. The void return type is used to indicate that the method does not return anything but has some effect such as printing to the screen. After the return type comes the method name followed by parentheses containing the list of parameters. In this case there are no parameters but we still need the ()s. The body of the method is in {}s. As we’ve discussed, the method can access and use the instance variables defined in the class: name, email, and phoneNumber but will get the values specific to the object we called print on.

🔗

public void print()
{
  System.out.println("Name: " + name);
  System.out.println("Email: " + email);
  System.out.println("Phone Number: " + phoneNumber);
}

To call a method, we need an object that is an instance of the class such as we get by calling its constructor. Then we use the dot (.) operator to call its public methods, for example p1.print() means call the print method on the object p1.

🔗

// call the constructor to create a new person
Person p1 = new Person("Sana", "[email protected]", "123-456-7890");
// call p1's print method
p1.print();

Activity 3.3.4.

Click on all the lines of code that are part of a method in the following class.

🔗

Methods follow the constructor. They include a return type in case they returns something from the method.

public class Name
{
    private String first;
    private String last;

    public Name(String theFirst, String theLast)
    {
        first = theFirst;
        last = theLast;
    }

    public void setFirst(String theFirst)
    {
        first = theFirst;
    }

    public void setLast(String theLast)
    {
        last = theLast;
    }

}

🔗

Activity 3.3.5.

The following Name class keeps track of the first and last name of a person. Add a method print that prints out the instance variables first and last. Note that the methods have direct access and share the instance variables.

🔗

public class Name
{
    private String first;
    private String last;

public Name(String theFirst, String theLast)
    {
        first = theFirst;
        last = theLast;
    }

// Complete the print method below to print out the
    // first and last instance variables with a space in between
    public void print()
    {

}

public static void main(String[] args)
    {
        Name n = new Name("Ada", "Lovelace");
        n.print();
    }
}
====
import static org.junit.Assert.*;

import org.junit.*;

import java.io.*;

public class RunestoneTests extends CodeTestHelper
{
      public RunestoneTests()
      {
          super("Name"); // class name / location of main
          Object[] values = new Object[] {"Mickey", "Mouse"};
          setDefaultValues(values);
      }
      @Test
      public void testMain()
      {
          String output = getMethodOutput("main");
          String expect = "Ada Lovelace";
          boolean passed = getResults(expect, output, "Expected output from main");
          assertTrue(passed);
      }
      @Test
      public void testPrint()
      {
          String output = getMethodOutput("print");
          String expect = "Mickey Mouse";
          boolean passed = getResults(expect, output, "Expected output from print method with object Mickey Mouse");
          assertTrue(passed);
      }
}

🔗

Subsection 3.3.6 Coding Challenge : Virtual Pet Class

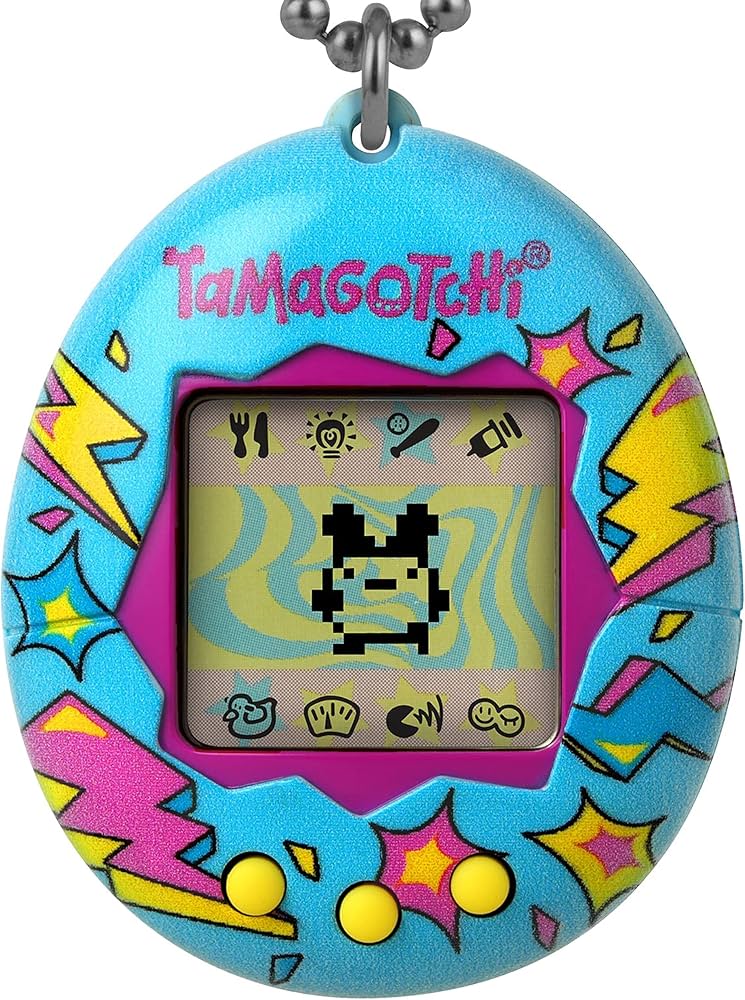

In the late 1990s and early 2000s, digital pets like in the photo were a huge hit! You had to feed, play, and interact with your virtual pet in order to keep it healthy and happy. Let’s think about how they were programmed.

🔗

Design: In pairs, brainstorm about the object-oriented design for the virtual pet. What data or instance variables would you need to keep track of for a virtual pet? What behaviors or methods would the virtual pet have? (You could draw a Class Diagram for this class using app.diagrams.net or Creately.com, although it is not required). Then, using the Person class above as a guide, write a VirtualPet class in the Active Code template below with the following parts.
🔗

🔗
Instance Variables: Declare at least 3 instance variables in the VirtualPet class below. Two of the instance variables should be called name and health where health is a number from 0 to 10. The rest can be variables from your design above. Don’t forget to add in their private access modifiers.
🔗

🔗
Methods: Complete the print method to print out the instance variables of the VirtualPet object, and complete the feed method to add 1 to the health instance variable. Remember that the methods have direct access to the instance variables. Create at least one more method that changes one of the instance variables from your design. (The constructor method and a get method is written for you below. You will learn how to write constructors in detail in the next lesson.)
🔗

🔗
Complete the main method to construct at least 2 VirtualPet objects that call the VirtualPet constructor given to you with arguments for name and health. Then, use at least one of the objects to call its feed and print methods.
🔗

🔗

🔗

Project 3.3.6.

Complete the VirtualPet class below. Add at least 3 instance variables, a print method, a feed method, and at least 1 other method that changes an instance variable. Then complete the main method to construct at least 2 VirtualPet objects, call the feed and print method with one of them.

🔗

public class VirtualPet
{
    // write 3 instance variables for VirtualPet's name,
    // health (as a number), and at least 1 other from your design
    // Remember the pattern:  private type variableName;

// constructor written for you - do not change
    public VirtualPet(String initName, int initHealth)
    {
        // the constructor sets the instance variables to the init parameter variables
        name = initName;
        health = initHealth;
    }

// Print the VirtualPet's data (instance variables) with System.out.println
    public void print()
    {
        // print the instance variables with spaces between them

}

// Complete the feed method below to add to the health instance variable
    public void feed()
    {
        // add 1 to the health variable

}

// Create another public void method that changes one of the instance variables

// get method used for testing - do not change
    public int getHealth()
    {
        return health;
    }

// main method for testing
    public static void main(String[] args)
    {
        VirtualPet p = new VirtualPet("Fluffy", 5);
        // call the VirtualPet constructor to create another new object with a different name and health

// call the pet object p's feed() method

// call the other method that you created

// call the pet object p's print() method

}
}
====
import static org.junit.Assert.*;

import org.junit.*;

import java.io.*;

public class RunestoneTests extends CodeTestHelper
{
    public RunestoneTests()
    {
        super("VirtualPet"); // class name / location of main

Object[] values = new Object[] {"Fluffy", 5};
        setDefaultValues(values);
    }
     @Test
     public void countMethods()
     {
         String target = "public void";
         String code = getCode();

int num = countOccurences(code, target);

boolean passed = num >= 3;

getResults("3+", "" + num, "public void methods", passed);
         assertTrue(passed);
     }

@Test
    public void testPrint()
    {
        String output = getMethodOutput("print");
        String expect = "Fluffy";

boolean passed = getResults(expect, output, "Checking method print()");
        assertTrue(passed);
    }

@Test
    public void testFeed()
    {
        VirtualPet p = new VirtualPet("Fluffy",5);
        p.feed();
        String output = p.getHealth() + "";
        String expect = "6";
        boolean passed = getResults(expect, output, "Expected health for pet Fluffy with initial health 5 after feed()");
        assertTrue(passed);
    }
    @Test
    public void testFeed2()
    {
        VirtualPet p1 = new VirtualPet("Pikachu",1);
        p1.feed();
        String output = p1.getHealth() + "";
        String expect = "2";
        boolean passed = getResults(expect, output, "Expected health for pet Pikachu with initial health 1 after feed()");
        assertTrue(passed);
    }

@Test
    public void testCallConstructors()
    {
        String code = getCodeWithoutComments();
        String search = "= new VirtualPet(";

int num = countOccurences(code, search);

String expect = search + "...) x 2";
        String actual = search + "...) x " + num;

boolean passed = getResults(expect, actual, "Checking that you created another VirtualPet object");
        assertTrue(passed);
    }

@Test
    public void testVariableTypes()
    {
        String varTypes = "String int";
        String output = testInstanceVariableTypes(varTypes.split(" "));

boolean passed = getResults(varTypes, output, "Checking Instance Variable Type(s)");
        assertTrue(passed);
    }

@Test
    public void testPrivateVariables()
    {
        String expect = "3 Private";
        String output = testPrivateInstanceVariables();

boolean passed = getResults(expect, output, "Checking Private Instance Variable(s)");
        assertTrue(passed);
    }
}

🔗

Subsection 3.3.7 Design a Class for your Community

In this unit, you will design a class of your own choice that is relevant to your community. You will improve the class in each lesson of this unit. We suggest that you work in pairs on this project. If you would rather work on this project as 1 stand-alone lab project rather than a piece at a time at the end of each lesson, you can do this in this lesson at the end of the unit.

🔗

Make your own copy of this worksheet from the File menu. For question 1, brainstorm and ask people in your community what would be important or useful for them to track in a community organization or activity or to help your community. For example, you could create a Java class to keep track of community events, club activities, athletic games or statistics, community leaders, performers or performances, health tracking, or another subject of your choice.
🔗

🔗
Come up with the class name for your community data-tracking class (it should be a category of people or things, not a specific person or thing). Come up with at least 3 instance variables that are attributes of things in that class. Think about what data type each variable should be.You can use the worksheet to design your class. Optionally, you may want to draw a UML class diagram for your class on paper or using app.diagrams.net or Creately.com (see tutorial on class diagrams).
🔗

🔗
Type in your class name and declare the instance variables for your class in the active code exercise below. Click on run. Your class will not print out anything yet, but it should run without errors. You will add constructors and other methods to this class in the next lessons.
🔗

🔗

🔗

Project 3.3.7.

Come up with the class name for your community data-tracking class (it should be a category of people or things, not a specific person or thing) and at least 3 instance variables that are attributes of things in that class. Your class will not print out anything yet, but it should run without errors.

🔗

Subsection 3.3.8 Summary

(AP 3.3.A.1) Data encapsulation is a technique in which the implementation details of a class are kept hidden from external classes.
🔗

🔗
(AP 3.3.A.1) The keywords public and private affect the access of classes, data, constructors, and methods. The keyword private restricts access to the declaring class, while the keyword public allows access from classes outside the declaring class.
🔗

🔗
(AP 3.3.A.2) In this course, classes are always designated public and are declared with the keyword class.
🔗

🔗
(AP 3.3.A.3) In this course, constructors are always designated public.
🔗

🔗
(AP 3.3.A.4) Instance variables belong to the object, and each object has its own copy of the variables.
🔗

🔗
(AP 3.3.A.5) Access to attributes should be kept internal to the class in order to accomplish encapsulation. Therefore, it is good programming practice to designate the instance variables for these attributes as private unless the class specification states otherwise.
🔗

🔗
Instance Variables define the attributes or data needed for objects, and methods define the behaviors or functions of the object.
🔗

🔗

🔗

Subsection 3.3.9 AP Practice

Activity 3.3.8.

Consider the Cat class which will contain a String and an int attribute for a cat’s name and age and a constructor.

🔗

public class Cat
{
    /* missing code */
}

Which of the following replacements for /* missing code */ is the most appropriate implementation of the class?

🔗

public String name;
public int age;
private Cat(String name, int age)
{ /* implementation not shown */ }

Instance variables should be private.

public String name;
private int age;
private Cat(String name, int age)
{ /* implementation not shown */ }

Instance variables should be private.

private String name;
private int age;
public Cat(String name, int age)
{ /* implementation not shown */ }

Correct! The instance variables are private and the constructor is public.

public String name;
public int age;
public Cat(String name, int age)
{ /* implementation not shown */ }

Instance variables should be private.

private String name;
private int age;
private Cat(String name, int age)
{ /* implementation not shown */ }

Constructor should be public.

🔗

Activity 3.3.9.

Consider the Party class below which will contain three int attributes for numOfPeople, volumeOfMusic, and numOfBoxesOfPizza, a constructor, and a startParty method. The startParty method is intended to be accessed outside the class.

🔗

public class Party
{
    /* missing code */
}

Which of the following replacements for /* missing code */ is the most appropriate implementation of the class?

🔗

private int numOfPeople;
private int volumeOfMusic;
private int numOfBoxesOfPizza;
public Party()
{ /* implementation not shown */ }
private void startParty()
{ /* implementation not shown */ }

Method startParty() should be public.

private int numOfPeople;
private int volumeOfMusic;
private int numOfBoxesOfPizza;
public Party()
{ /* implementation not shown */ }
public void startParty()
{ /* implementation not shown */ }

Correct, instance variables should be private and the methods should be public.

public int numOfPeople;
public int volumeOfMusic;
public int numOfBoxesOfPizza;
public Party()
{ /* implementation not shown */ }
public void startParty()
{ /* implementation not shown */ }

Instance variables should be private.

private int numOfPeople;
private int volumeOfMusic;
private int numOfBoxesOfPizza;
private Party()
{ /* implementation not shown */ }
private void startParty()
{ /* implementation not shown */ }

Methods should be public.

🔗

You have attempted of activities on this page.

🔗

Prev Top Next
